CG
series image
series image

Solid carbide type with 2 cutting edges.
Continuous turning from internal turning to face turning.
Each boring bar comes in two types, with or without breaker.
The minimum cutting dameter is from 2.2mm.

The actual product may differ from the displayed image.

Liquid error (snippets/custom-collection-grid-drawing line 21): concat filter requires an array argument
01

80 products

in stock mark

= in Stock

out of stock mark

= Out of Stock

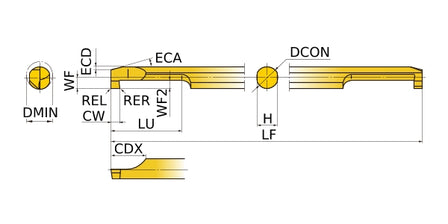

Name Name Type Cutting Diameter IC L/D Cutting Width Shank Diameter Maximum
Depth of Cut 		Functional
Length 		Connection Diameter Corner Radius Shank Height Shank Width Cutting Edge
Length 		Number of
Cutting
Edge 		Breaker Materials Functional
Length 		Hand Coolant Stock Price
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
CG0305RS-10 TF15 image CG0305RS-10
TF15 		TF15 492631 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG0305RS-10 VP15TF image CG0305RS-10
VP15TF 		VP15TF 492957 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
CG0305RS-10B TF15 image CG0305RS-10B
TF15 		TF15 492640 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG0305RS-10B VP15TF image CG0305RS-10B
VP15TF 		VP15TF 492965 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
CG0306RS-20 TF15 image CG0306RS-20
TF15 		TF15 492658 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG0306RS-20 VP15TF image CG0306RS-20
VP15TF 		VP15TF 492973 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
CG0306RS-20B TF15 image CG0306RS-20B
TF15 		TF15 492666 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG0306RS-20B VP15TF image CG0306RS-20B
VP15TF 		VP15TF 492981 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
CG03RS-10 TF15 image CG03RS-10
TF15 		TF15 296930 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG03RS-10 VP15TF image CG03RS-10
VP15TF 		VP15TF 296948 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
CG03RS-10B TF15 image CG03RS-10B
TF15 		TF15 296956 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG03RS-10B VP15TF image CG03RS-10B
VP15TF 		VP15TF 296964 1.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
Sold out
CG03RS-20 TF15 image CG03RS-20
TF15 		TF15 296972 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG03RS-20 VP15TF image CG03RS-20
VP15TF 		VP15TF 296981 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
CG03RS-20B TF15 image CG03RS-20B
TF15 		TF15 296999 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$72.27
CG03RS-20B VP15TF image CG03RS-20B
VP15TF 		VP15TF 297001 2.0 50.0 3.0 2.7 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 50.0 Right External
$93.91
CG0407RS-10 TF15 image CG0407RS-10
TF15 		TF15 492674 1.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$79.42
CG0407RS-10 VP15TF image CG0407RS-10
VP15TF 		VP15TF 493036 1.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$98.15
CG0407RS-10B TF15 image CG0407RS-10B
TF15 		TF15 492682 1.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$79.42
CG0407RS-10B VP15TF image CG0407RS-10B
VP15TF 		VP15TF 493044 1.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$98.15
CG0408RS-20 TF15 image CG0408RS-20
TF15 		TF15 492691 2.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$79.42
CG0408RS-20 VP15TF image CG0408RS-20
VP15TF 		VP15TF 493052 2.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$98.15
CG0408RS-20B TF15 image CG0408RS-20B
TF15 		TF15 492703 2.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$79.42
CG0408RS-20B VP15TF image CG0408RS-20B
VP15TF 		VP15TF 493061 2.0 60.0 4.0 3.6 Micro-Mini Twin P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material) 60.0 Right External
$98.15
