iMX_S3A
High efficiency machining is possible due to polished rake face and sharp cutting edge.
The actual product may differ from the displayed image.
15 products
= in Stock
= Out of Stock

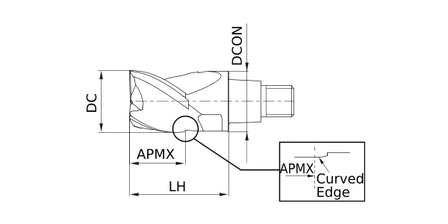

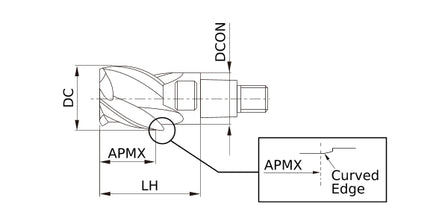

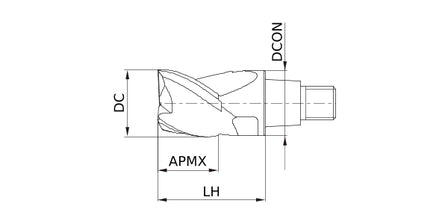

| Name | Name | Type | Cutting Diameter | IC | L/D | Cutting Width | Shank Diameter |
Maximum Depth of Cut |
Functional Length |
Connection Diameter | Corner Radius | Shank Height | Shank Width |
Cutting Edge
Length |
Number of Cutting Edge |
Breaker | Materials |
Functional Length |
Hand | Coolant | Stock | Price | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |||||||||||||||||
 |
IMX10S3A0375P ET2020 |
IMX10S3A0375P ET2020 |
827112 | 01 | 0.3750 | 0.3750 | 0.3 | 0.63 | 0.3630 | 3 | Square |
|
0.63 | Right | External |
|
$100.20 | |||||||||||||||||
 |
IMX10S3A10008 ET2020 |
IMX10S3A10008 ET2020 |
806160 | 02 | 10.0 | 10.0 | 8.0 | 16.0 | 9.7 | 3 | Square |
|
16.0 | Right | External |
|
$104.22 | |||||||||||||||||
 |
IMX10S3A12010 ET2020 |
IMX10S3A12010 ET2020 |
846559 | 03 | 12.0 | 12.0 | 10.1 | 19.0 | 9.7 | 3 | Square |
|
19.0 | Right | External |
|
$126.84 | |||||||||||||||||
 |
IMX12S3A0500P ET2020 |
IMX12S3A0500P ET2020 |
827121 | 01 | 0.5000 | 0.5000 | 0.4 | 0.789 | 0.4882 | 3 | Square |
|
0.789 | Right | External |
|
$126.84 | |||||||||||||||||
 |
IMX12S3A12009 ET2020 |
IMX12S3A12009 ET2020 |
10581872 | 02 | 12.0 | 12.0 | 9.6 | 19.0 | 11.7 | 3 | Square |
|
19.0 | Right | External |
|
$131.90 | |||||||||||||||||
 |
IMX12S3A14011 ET2020 |
IMX12S3A14011 ET2020 |
846567 | 03 | 14.0 | 14.0 | 11.7 | 22.5 | 11.7 | 3 | Square |
|
22.5 | Right | External |
|
$155.01 | |||||||||||||||||
 |
IMX16S3A0625P ET2020 |
IMX16S3A0625P ET2020 |
827139 | 01 | 0.6250 | 0.6250 | 0.5 | 0.945 | 0.6051 | 3 | Square |
|
0.945 | Right | External |
|
$181.63 | |||||||||||||||||
 |
IMX16S3A16012 ET2020 |
IMX16S3A16012 ET2020 |
10581889 | 02 | 16.0 | 16.0 | 12.8 | 24.0 | 15.5 | 3 | Square |
|
24.0 | Right | External |
|
$188.90 | |||||||||||||||||
 |
IMX16S3A18014 ET2020 |
IMX16S3A18014 ET2020 |
846575 | 03 | 18.0 | 18.0 | 14.9 | 27.0 | 15.5 | 3 | Square |
|
27.0 | Right | External |
|
$214.53 | |||||||||||||||||
 |
IMX20S3A0750P ET2020 |
IMX20S3A0750P ET2020 |
827147 | 01 | 0.7500 | 0.7500 | 0.6 | 1.181 | 0.7299 | 3 | Square |
|
1.181 | Right | External |
|
$231.76 | |||||||||||||||||
 |
IMX20S3A20016 ET2020 |
IMX20S3A20016 ET2020 |
10581896 | 02 | 20.0 | 20.0 | 16.0 | 30.0 | 19.5 | 3 | Square |
|
30.0 | Right | External |
|
$241.00 | |||||||||||||||||
 |
IMX20S3A22018 ET2020 |
IMX20S3A22018 ET2020 |
846583 | 03 | 22.0 | 22.0 | 18.6 | 33.0 | 19.5 | 3 | Square |
|
33.0 | Right | External |
|
$275.58 | |||||||||||||||||
 |
IMX25S3A1000P ET2020 |
IMX25S3A1000P ET2020 |
827155 | 01 | 1.0000 | 1.0000 | 0.8 | 1.5 | 0.9799 | 3 | Square |
|
1.5 | Right | External |
|
$322.56 | |||||||||||||||||
 |
IMX25S3A25020 ET2020 |
IMX25S3A25020 ET2020 |
10581902 | 02 | 25.0 | 25.0 | 20.0 | 37.5 | 24.5 | 3 | Square |
|
37.5 | Right | External |
|
$335.47 | |||||||||||||||||
 |
IMX25S3A28023 ET2020 |
IMX25S3A28023 ET2020 |
846591 | 03 | 28.0 | 28.0 | 23.4 | 41.5 | 24.5 | 3 | Square |
|
41.5 | Right | External |
|
$383.63 | |||||||||||||||||
