diaedge
VF2SBD1/4
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

613819

ANSI

VF2SB/D1/4

ISO

VF2SBD1/4

H (Hard material)

19

Regular price $101.42 USD
Regular price Sale price $101.42 USD
Sale

EDP

613819

ANSI

VF2SB/D1/4

ISO

VF2SBD1/4

H (Hard material)
View full details
  • Dimensions
  • Features

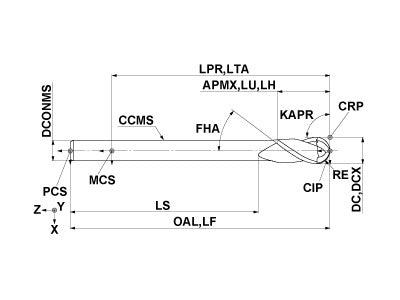

  • Drawings
  • Technical Information
VF2SBD1/4
Coolant
External
Hand
Right

Unit: inch

DC
0.25
APMX
0.5
LU
0.5
LH
0.5
OAL
3.5
DCONMS
0.25
RE
0.125
FHA
30.0
ZEFP
2
ZEFF
2
VF2SBD1/4

Unit: inch

DC
0.25
APMX
0.5
LU
0.5
LH
0.5
OAL
3.5
DCONMS
0.25
RE
0.125
FHA
30.0
ZEFP
2
ZEFF
2
