diaedge
IMX12CH3L120A45 EP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10520765

ANSI

IMX12CH3L120A45 EP7020

ISO

IMX12CH3L120A45 EP7020

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

51

Regular price $151.88 USD
Regular price Sale price $151.88 USD
Sale

EDP

10520765

ANSI

IMX12CH3L120A45 EP7020

ISO

IMX12CH3L120A45 EP7020

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

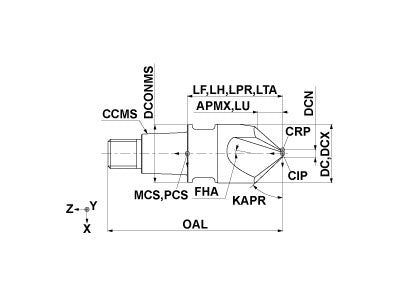

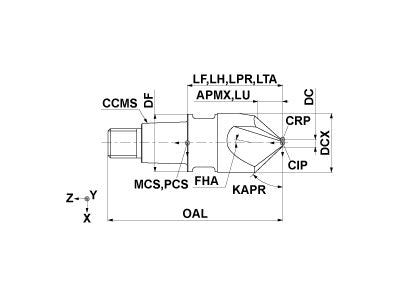

  • Drawings
  • Technical Information
IMX12CH3L120A45 EP7020
Coolant
External
Hand
Right

Unit: mm

DC
12
APMX
5.2
LU
5.2
LH
19
OAL
33.7
DCONMS
11.7
FHA
5
ZEFP
3
ZEFF
3
IMX12CH3L120A45 EP7020

Unit: mm

DC
12
APMX
5.2
LU
5.2
LH
19
OAL
33.7
DCONMS
11.7
FHA
5
ZEFP
3
ZEFF
3
