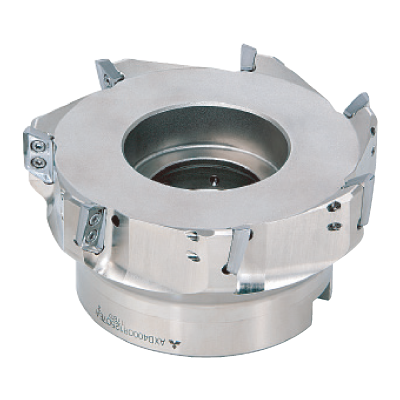

AXD4000UR0303CB
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10521267

ANSI

AXD4000UR0303CB

ISO

AXD4000UR0303CB

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

2

Regular price $878.67 USD
Regular price Sale price $878.67 USD
Sale

EDP

10521267

ANSI

AXD4000UR0303CB

ISO

AXD4000UR0303CB

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

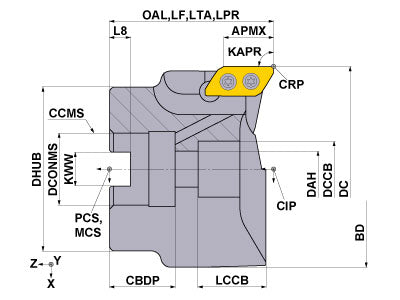

  • Drawings
  • Technical Information
AXD4000UR0303CB
Coolant
Internal
Hand
Right

Unit: inch

DC
3
LF
2
APMX
0.583
OAL
2
DCONMS
1
DCSFMS
2.19
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
27000
GAMF
24
GAMP
15
WT
1.900
AXD4000UR0303CB

Unit: inch

DC
3
LF
2
APMX
0.583
OAL
2
DCONMS
1
DCSFMS
2.19
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RPMX
27000
GAMF
24
GAMP
15
WT
1.900

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.79
TKY08D 106895 TKY08D
inventory mark
$15.86
TS3SB 565440 TS3SB
inventory mark
$11.12
HSCU50014H 243707 HSCU50014H
inventory mark
$28.38
