- Dimensions
- Features

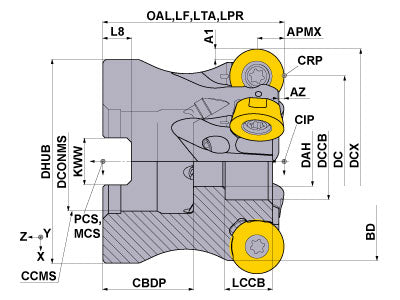

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: inch
DC
2.026
DCX
2.5
LF
2
APMX
0.236
OAL
2
DCONMS
1
DCSFMS
2.19
NOF
6
ZEFF
6
ZEFP
6
RMPX
3.1
RPMX
12000
GAMF
-6
GAMP
4
WT
1.367
