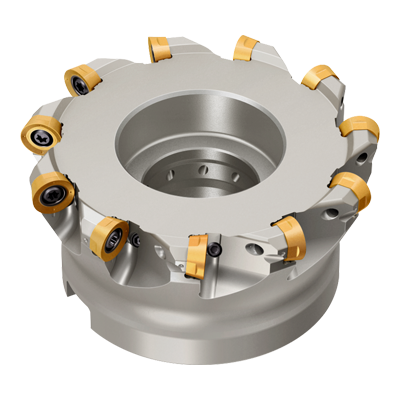

ARP6UPR2507CA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10527351

ANSI

ARP6UPR2507CA

ISO

ARP6UPR2507CA

M (Stainless) S (Heat-Resistant)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

9

Regular price $871.52 USD
Regular price Sale price $871.52 USD
Sale

EDP

10527351

ANSI

ARP6UPR2507CA

ISO

ARP6UPR2507CA

M (Stainless) S (Heat-Resistant)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

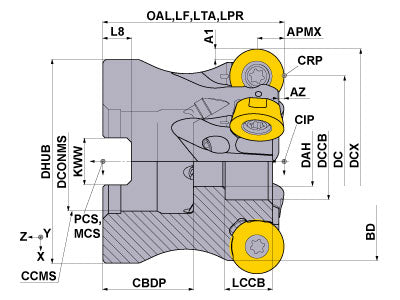

  • Drawings
  • Technical Information
ARP6UPR2507CA
Coolant
Internal
Hand
Right

Unit: inch

DC
2.026
DCX
2.5
LF
2
APMX
0.236
OAL
2
DCONMS
1
DCSFMS
2.19
NOF
7
ZEFF
7
ZEFP
7
RMPX
3.1
RPMX
12000
GAMF
-6
GAMP
4
WT
1.367
ARP6UPR2507CA

Unit: inch

DC
2.026
DCX
2.5
LF
2
APMX
0.236
OAL
2
DCONMS
1
DCSFMS
2.19
NOF
7
ZEFF
7
ZEFP
7
RMPX
3.1
RPMX
12000
GAMF
-6
GAMP
4
WT
1.367

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
HSCU50014H 243707 HSCU50014H
inventory mark
$28.38
TIP15D 10526958 TIP15D
inventory mark
$21.44
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS4 389044 TPS4
inventory mark
$3.36
