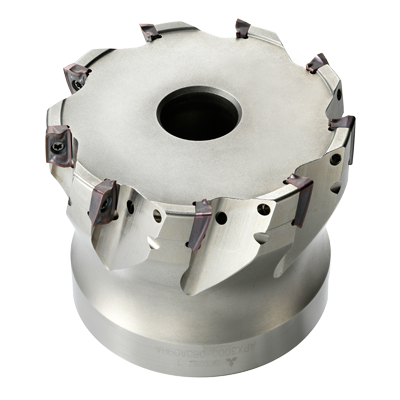

APX3000R1506B
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10527696

ANSI

APX3000R1506B

ISO

APX3000R1506B

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
4

Price
$656.23 USD
$656.23 USD
Sale

EDP

10527696

ANSI

APX3000R1506B

ISO

APX3000R1506B

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

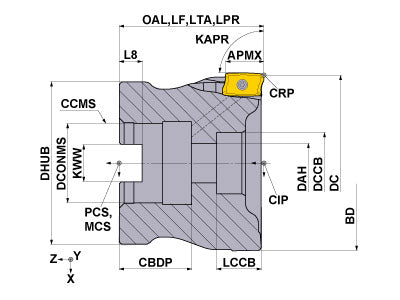

  • Drawings
  • Technical Information
APX3000R1506B
Coolant
Internal
Hand
Right

Unit: mm

DC
38.1
LF
40
APMX
10
OAL
40
DCONMS
19.05
DCSFMS
33.54
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
2.5
GAMF
26
GAMP
22
WT
0.353
APX3000R1506B

Unit: mm

DC
38.1
LF
40
APMX
10
OAL
40
DCONMS
19.05
DCSFMS
33.54
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
2.5
GAMF
26
GAMP
22
WT
0.353


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$7.61
HSCU37513H 242835 HSCU37513H
inventory mark
$21.20
TPS25-1 291590 TPS25-1
inventory mark
$3.36
MK1KS 291805 MK1KS
inventory mark
$4.79
