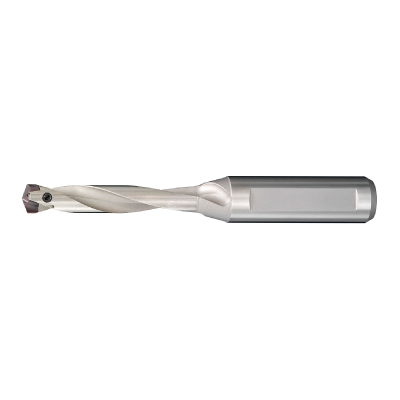

The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
1
/
of
2
EDP
10530894
ANSI
STAWLN0027
ISO
STAWLN0027
Stock
14
Price
Regular price
$349.55 USD
Regular price
Sale price
$349.55 USD
Unit price
/
per
EDP
10530894
ANSI
STAWLN0027
ISO
STAWLN0027
Change the number in sums of 1s.
Couldn't load pickup availability

- Dimensions
- Features

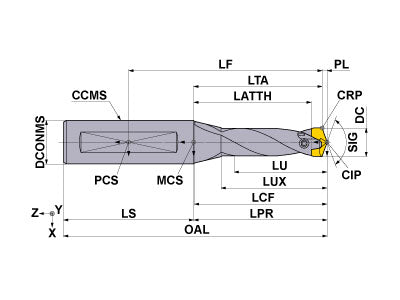

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: inch
DC
0.4219
ULDR
8
LU
3.37
LCF
3.884
LPR
3.896
OAL
5.785
DCONMS
0.625
PL
0.077
SIG
140
ZEFF
2
Unit: inch
DC
0.4219
ULDR
8
LU
3.37
LCF
3.884
LPR
3.896
OAL
5.785
DCONMS
0.625
PL
0.077
SIG
140
ZEFF
2
Wavy cutting edge design for good chip control.
Highly rigid clamping system offers stability and reliability for small hole drilling.
2D Model (DXF)
3D Model (STP)
