1
/
of
2
EDP
10530900
ANSI
STAWLN0028
ISO
STAWLN0028
Stock
8
Price
Regular price
$368.53 USD
Regular price
Sale price
$368.53 USD
Unit price
/
per
EDP
10530900
ANSI
STAWLN0028
ISO
STAWLN0028
Change the number in sums of 1s.
Couldn't load pickup availability

- Dimensions
- Features

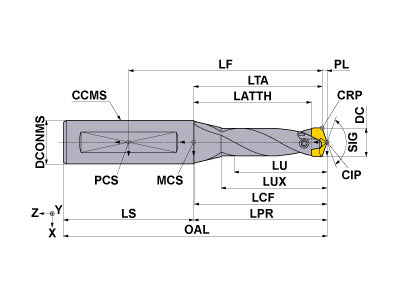

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: inch
DC
0.4375
ULDR
8
LU
3.5
LCF
4.225
LPR
4.293
OAL
6.182
DCONMS
0.625
PL
0.08
SIG
140
ZEFF
2
Unit: inch
DC
0.4375
ULDR
8
LU
3.5
LCF
4.225
LPR
4.293
OAL
6.182
DCONMS
0.625
PL
0.08
SIG
140
ZEFF
2
Wavy cutting edge design for good chip control.
Highly rigid clamping system offers stability and reliability for small hole drilling.
2D Model (DXF)
3D Model (STP)
