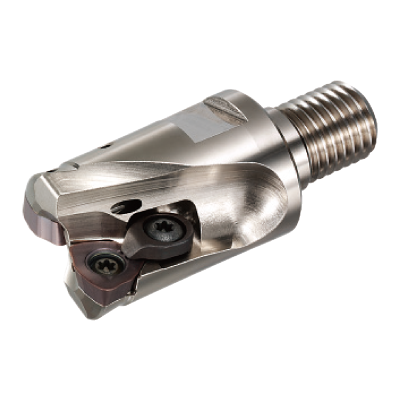

AJXU08R122AM1030
The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
Stock
87
Price
Regular price
$391.45 USD
Regular price
Sale price
$391.45 USD
Unit price
per
- Dimensions
- Features

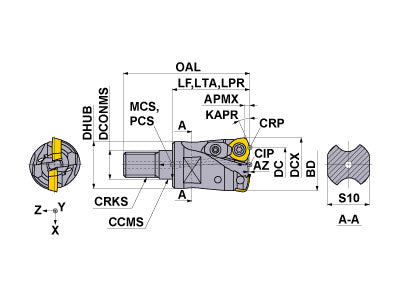

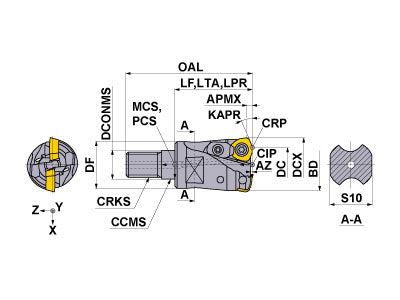

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: mm
DC
10.4
DCX
19.05
LF
30
APMX
1.5
OAL
49
DCONMS
10.5
DCSFMS
18
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.4
RMPX
3.5
GAMF
-5
GAMP
4
WT
0.200
Unit: mm
DC
10.4
DCX
19.05
LF
30
APMX
1.5
OAL
49
DCONMS
10.5
DCSFMS
18
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.4
RMPX
3.5
GAMF
-5
GAMP
4
WT
0.200
