APX3000UR102AM08A30
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10533055

ANSI

APX3000UR102AM08A30

ISO

APX3000UR102AM08A30

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
4

Price
$365.37 USD
$365.37 USD
Sale

EDP

10533055

ANSI

APX3000UR102AM08A30

ISO

APX3000UR102AM08A30

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

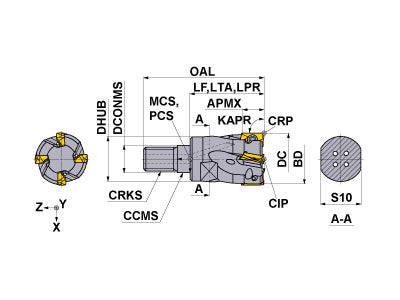

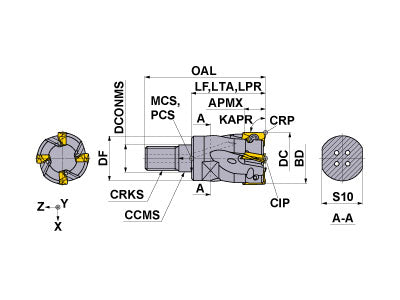

  • Drawings
  • Technical Information
APX3000UR102AM08A30
Coolant
Internal
Hand
Right

Unit: mm

DC
15.875
LF
30
APMX
10
OAL
48
DCONMS
8.5
DCSFMS
13
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11.3
GAMF
22
GAMP
12
WT
0.200
APX3000UR102AM08A30

Unit: mm

DC
15.875
LF
30
APMX
10
OAL
48
DCONMS
8.5
DCSFMS
13
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11.3
GAMF
22
GAMP
12
WT
0.200


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS25 291581 TPS25
inventory mark
$3.36
MK1KS 291805 MK1KS
inventory mark
$4.79
TIP07F 291573 TIP07F
inventory mark
$7.61
