APX3000UR143AM10A30
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10533093

ANSI

APX3000UR143AM10A30

ISO

APX3000UR143AM10A30

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
48

Price
$411.42 USD
$411.42 USD
Sale

EDP

10533093

ANSI

APX3000UR143AM10A30

ISO

APX3000UR143AM10A30

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

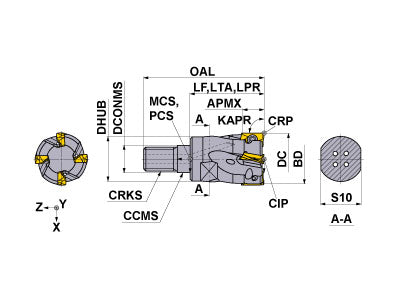

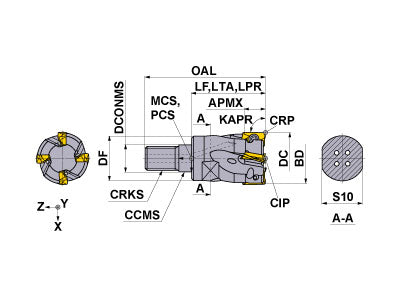

  • Drawings
  • Technical Information
APX3000UR143AM10A30
Coolant
Internal
Hand
Right

Unit: inch

DC
0.875
LF
1.181
APMX
0.394
OAL
1.929
DCONMS
0.413
DCSFMS
0.709
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
5.6
GAMF
23
GAMP
17
WT
0.200
APX3000UR143AM10A30

Unit: inch

DC
0.875
LF
1.181
APMX
0.394
OAL
1.929
DCONMS
0.413
DCSFMS
0.709
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
5.6
GAMF
23
GAMP
17
WT
0.200


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$6.28
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS25-1 291590 TPS25-1
inventory mark
$3.36
