APX3000UR184AM12A35
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10533123

ANSI

APX3000UR184AM12A35

ISO

APX3000UR184AM12A35

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
5

Price
$477.41 USD
$477.41 USD
Sale

EDP

10533123

ANSI

APX3000UR184AM12A35

ISO

APX3000UR184AM12A35

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

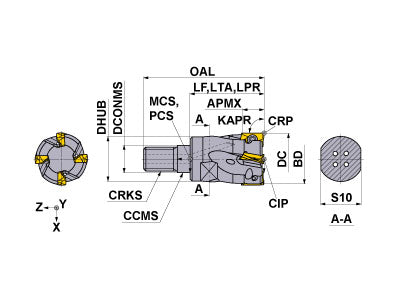

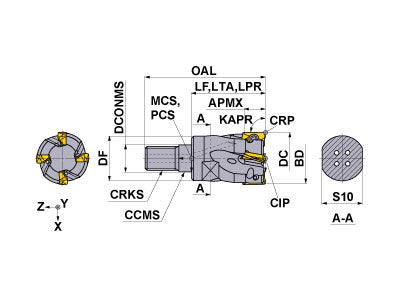

  • Drawings
  • Technical Information
APX3000UR184AM12A35
Coolant
Internal
Hand
Right

Unit: mm

DC
28.575
LF
35
APMX
10
OAL
57
DCONMS
12.5
DCSFMS
21
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
3.4
GAMF
25
GAMP
19
WT
0.400
APX3000UR184AM12A35

Unit: mm

DC
28.575
LF
35
APMX
10
OAL
57
DCONMS
12.5
DCSFMS
21
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
3.4
GAMF
25
GAMP
19
WT
0.400


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS25-1 291590 TPS25-1
inventory mark
$3.36
TIP07F 291573 TIP07F
inventory mark
$7.61
