APX3000UR205AM16A40
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10533130

ANSI

APX3000UR205AM16A40

ISO

APX3000UR205AM16A40

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
14

Price
$560.13 USD
$560.13 USD
Sale

EDP

10533130

ANSI

APX3000UR205AM16A40

ISO

APX3000UR205AM16A40

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

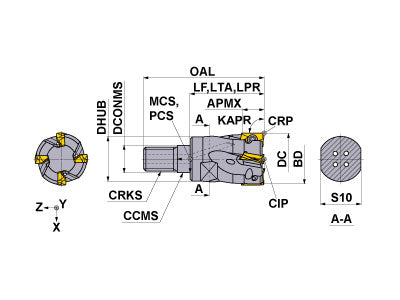

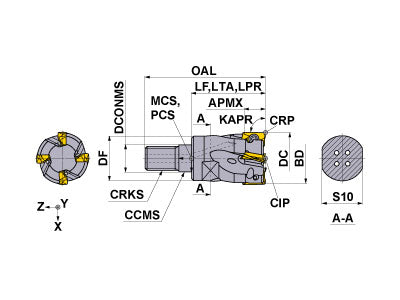

  • Drawings
  • Technical Information
APX3000UR205AM16A40
Coolant
Internal
Hand
Right

Unit: mm

DC
31.75
LF
40
APMX
10
OAL
63
DCONMS
17
DCSFMS
29
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
0.700
APX3000UR205AM16A40

Unit: mm

DC
31.75
LF
40
APMX
10
OAL
63
DCONMS
17
DCSFMS
29
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
0.700


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS25-1 291590 TPS25-1
inventory mark
$3.36
