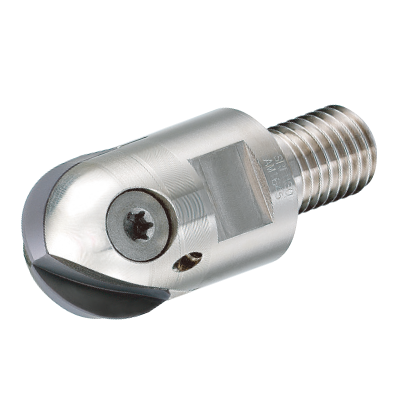

SRFHU10AM0830
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10533222

ANSI

SRFHU10AM0830

ISO

SRFHU10AM0830

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling

Stock
16

Price
$271.40 USD
$271.40 USD
Sale

EDP

10533222

ANSI

SRFHU10AM0830

ISO

SRFHU10AM0830

P (Steel) K (Cast Iron) N (Non-Ferrous) H (Hard material)
R_r Accuracy_finishing Application_Face milling Corner_Radius Shoulder milling_1 Application_Slot milling Application_Ramping Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

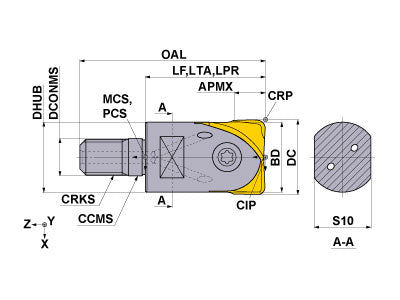

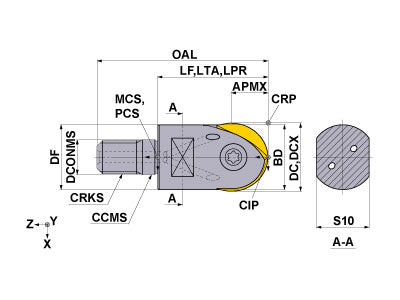

  • Drawings
  • Technical Information
SRFHU10AM0830
Coolant
Internal
Hand
Right

Unit: inch

DC
0.625
DCX
0.625
LF
1.181
APMX
0.352
OAL
1.89
DCONMS
0.335
DCSFMS
0.576
NOF
2
ZEFF
2
ZEFP
2
WT
0.200
SRFHU10AM0830

Unit: inch

DC
0.625
DCX
0.625
LF
1.181
APMX
0.352
OAL
1.89
DCONMS
0.335
DCSFMS
0.576
NOF
2
ZEFF
2
ZEFP
2
WT
0.200


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RS4015T 361949 RS4015T
inventory mark
$37.54
TKY15T 106903 TKY15T
inventory mark
$5.93
MK1KS 291805 MK1KS
inventory mark
$4.79
