MVS0970X15S100 DP1020
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10541678

ANSI

MVS0970X15S100 DP1020

ISO

MVS0970X15S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

Stock
4

Price
$617.61 USD
$617.61 USD
Sale

EDP

10541678

ANSI

MVS0970X15S100 DP1020

ISO

MVS0970X15S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

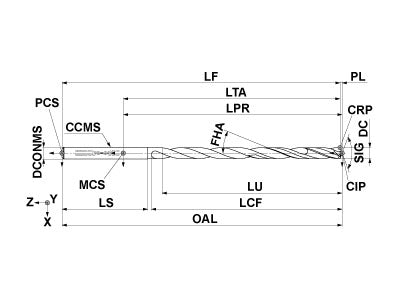

  • Drawings
  • Technical Information
MVS0970X15S100 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
9.7
ULDR
15
LU
147.3
LCF
181.8
OAL
239.8
DCONMS
10
PL
1.8
SIG
140
FHA
27
DC Max
-0.033
DC Min
-0.055
ZEFF
2
MVS0970X15S100 DP1020

Unit: mm

DC
9.7
ULDR
15
LU
147.3
LCF
181.8
OAL
239.8
DCONMS
10
PL
1.8
SIG
140
FHA
27
DC Max
-0.033
DC Min
-0.055
ZEFF
2
