MVS0360X15S060 DP1020
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10555316

ANSI

MVS0360X15S060 DP1020

ISO

MVS0360X15S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

Stock
40

Price
$287.50 USD
$287.50 USD
Sale

EDP

10555316

ANSI

MVS0360X15S060 DP1020

ISO

MVS0360X15S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

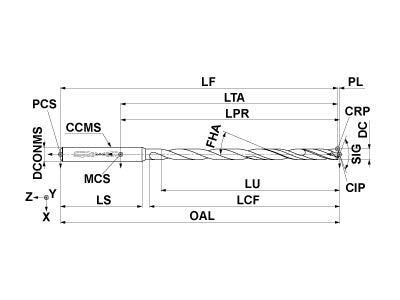

  • Drawings
  • Technical Information
MVS0360X15S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
3.6
ULDR
15
LU
54.7
LCF
72.7
OAL
123.7
DCONMS
6
PL
0.7
SIG
140
FHA
27
DC Max
-0.025
DC Min
-0.043
ZEFF
2
MVS0360X15S060 DP1020

Unit: mm

DC
3.6
ULDR
15
LU
54.7
LCF
72.7
OAL
123.7
DCONMS
6
PL
0.7
SIG
140
FHA
27
DC Max
-0.025
DC Min
-0.043
ZEFF
2
