MVS0630X15S080 DP1020
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10556740

ANSI

MVS0630X15S080 DP1020

ISO

MVS0630X15S080 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

Stock
12

Price
$413.95 USD
$413.95 USD
Sale

EDP

10556740

ANSI

MVS0630X15S080 DP1020

ISO

MVS0630X15S080 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

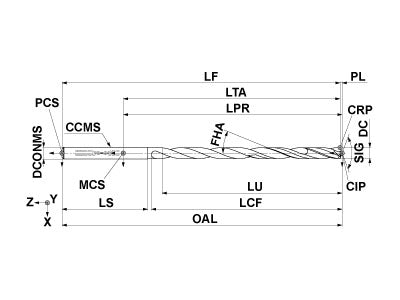

  • Drawings
  • Technical Information
MVS0630X15S080 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
6.3
ULDR
15
LU
95.6
LCF
118.1
OAL
174.1
DCONMS
8
PL
1.1
SIG
140
FHA
27
DC Max
-0.033
DC Min
-0.055
ZEFF
2
MVS0630X15S080 DP1020

Unit: mm

DC
6.3
ULDR
15
LU
95.6
LCF
118.1
OAL
174.1
DCONMS
8
PL
1.1
SIG
140
FHA
27
DC Max
-0.033
DC Min
-0.055
ZEFF
2
