MVS0450X20S060 DP1020
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10557273

ANSI

MVS0450X20S060 DP1020

ISO

MVS0450X20S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

Stock
11

Price
$448.59 USD
$448.59 USD
Sale

EDP

10557273

ANSI

MVS0450X20S060 DP1020

ISO

MVS0450X20S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

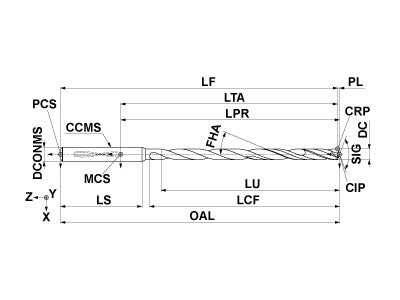

  • Drawings
  • Technical Information
MVS0450X20S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
4.5
ULDR
20
LU
90.8
LCF
104.8
OAL
157.8
DCONMS
6
PL
0.8
SIG
140
FHA
27
DC Max
-0.025
DC Min
-0.043
ZEFF
2
MVS0450X20S060 DP1020

Unit: mm

DC
4.5
ULDR
20
LU
90.8
LCF
104.8
OAL
157.8
DCONMS
6
PL
0.8
SIG
140
FHA
27
DC Max
-0.025
DC Min
-0.043
ZEFF
2
