diaedge
MVS1230X20S140 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10557808

ANSI

MVS1230X20S140 DP1020

ISO

MVS1230X20S140 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

6

Regular price $960.15 USD
Regular price Sale price $960.15 USD
Sale

EDP

10557808

ANSI

MVS1230X20S140 DP1020

ISO

MVS1230X20S140 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

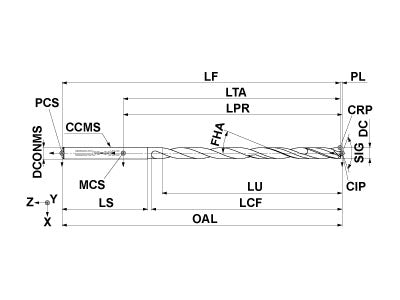

  • Drawings
  • Technical Information
MVS1230X20S140 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
12.3
ULDR
20
LU
248.2
LCF
290.2
OAL
356.2
DCONMS
14
PL
2.2
SIG
140
FHA
27
DC Max
-0.041
DC Min
-0.068
TCDCON
h6
ZEFF
2
MVS1230X20S140 DP1020

Unit: mm

DC
12.3
ULDR
20
LU
248.2
LCF
290.2
OAL
356.2
DCONMS
14
PL
2.2
SIG
140
FHA
27
DC Max
-0.041
DC Min
-0.068
TCDCON
h6
ZEFF
2
