EDP
10557860
ANSI
MVS1290X20S140 DP1020
ISO
MVS1290X20S140 DP1020
Stock
6
Price
Regular price
$960.15 USD
Regular price
Sale price
$960.15 USD
Unit price
/
per
EDP
10557860
ANSI
MVS1290X20S140 DP1020
ISO
MVS1290X20S140 DP1020
Change the number in sums of 1s.
- Dimensions
- Features

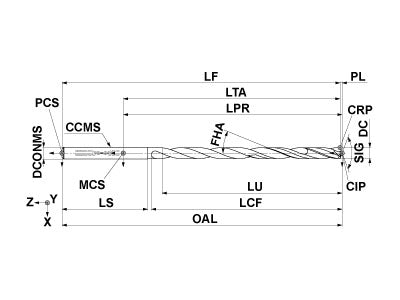

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: mm
DC
12.9
ULDR
20
LU
260.3
LCF
301.3
OAL
367.3
DCONMS
14
PL
2.3
SIG
140
FHA
27
DC Max
-0.041
DC Min
-0.068
TCDCON
h6
ZEFF
2
Unit: mm
DC
12.9
ULDR
20
LU
260.3
LCF
301.3
OAL
367.3
DCONMS
14
PL
2.3
SIG
140
FHA
27
DC Max
-0.041
DC Min
-0.068
TCDCON
h6
ZEFF
2
New grade DP1020 offers long tool life for a wide range of work materials.
Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)
2D Model (DXF)
3D Model (STP)
