diaedge
MVS0460X30S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10557884

ANSI

MVS0460X30S060 DP1020

ISO

MVS0460X30S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

22

Regular price $580.18 USD
Regular price Sale price $580.18 USD
Sale

EDP

10557884

ANSI

MVS0460X30S060 DP1020

ISO

MVS0460X30S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

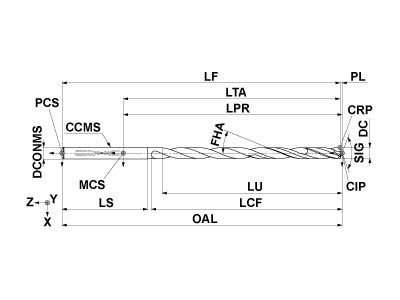

  • Drawings
  • Technical Information
MVS0460X30S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
4.6
ULDR
30
LU
138.8
LCF
165.8
OAL
218.8
DCONMS
6
PL
0.8
SIG
140
FHA
27
DC Max
-0.025
DC Min
-0.043
TCDCON
h6
ZEFF
2
MVS0460X30S060 DP1020

Unit: mm

DC
4.6
ULDR
30
LU
138.8
LCF
165.8
OAL
218.8
DCONMS
6
PL
0.8
SIG
140
FHA
27
DC Max
-0.025
DC Min
-0.043
TCDCON
h6
ZEFF
2
