diaedge
MVS0300X25S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10558041

ANSI

MVS0300X25S060 DP1020

ISO

MVS0300X25S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

17

Regular price $457.43 USD
Regular price Sale price $457.43 USD
Sale

EDP

10558041

ANSI

MVS0300X25S060 DP1020

ISO

MVS0300X25S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

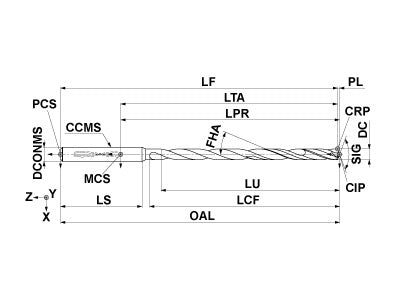

MVS0300X25S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
3
ULDR
25
LU
75.5
LCF
84.5
OAL
135.5
DCONMS
6
PL
0.5
SIG
140
FHA
27
DC Max
-0.017
DC Min
-0.031
TCDCON
h6
ZEFF
2
MVS0300X25S060 DP1020

Unit: mm

DC
3
ULDR
25
LU
75.5
LCF
84.5
OAL
135.5
DCONMS
6
PL
0.5
SIG
140
FHA
27
DC Max
-0.017
DC Min
-0.031
TCDCON
h6
ZEFF
2
