diaedge
MVS0610X25S080 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10558256

ANSI

MVS0610X25S080 DP1020

ISO

MVS0610X25S080 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

10

Regular price $624.02 USD
Regular price Sale price $624.02 USD
Sale

EDP

10558256

ANSI

MVS0610X25S080 DP1020

ISO

MVS0610X25S080 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

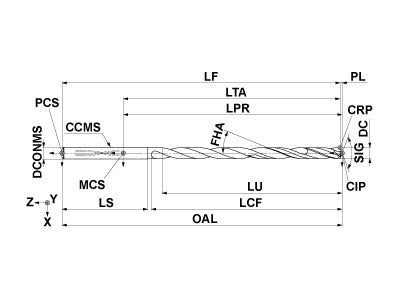

  • Drawings
  • Technical Information
MVS0610X25S080 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
6.1
ULDR
25
LU
153.6
LCF
183.1
OAL
239.1
DCONMS
8
PL
1.1
SIG
140
FHA
27
DC Max
-0.033
DC Min
-0.055
TCDCON
h6
ZEFF
2
MVS0610X25S080 DP1020

Unit: mm

DC
6.1
ULDR
25
LU
153.6
LCF
183.1
OAL
239.1
DCONMS
8
PL
1.1
SIG
140
FHA
27
DC Max
-0.033
DC Min
-0.055
TCDCON
h6
ZEFF
2
