diaedge
MVS0300X35S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10558492

ANSI

MVS0300X35S060 DP1020

ISO

MVS0300X35S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

31

Regular price $565.57 USD
Regular price Sale price $565.57 USD
Sale

EDP

10558492

ANSI

MVS0300X35S060 DP1020

ISO

MVS0300X35S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

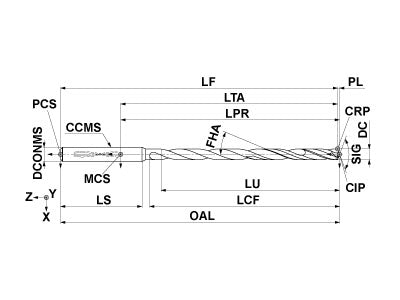

  • Drawings
  • Technical Information
MVS0300X35S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
3
ULDR
35
LU
105.5
LCF
115.5
OAL
166.5
DCONMS
6
PL
0.5
SIG
140
FHA
27
DC Max
-0.017
DC Min
-0.031
TCDCON
h6
ZEFF
2
MVS0300X35S060 DP1020

Unit: mm

DC
3
ULDR
35
LU
105.5
LCF
115.5
OAL
166.5
DCONMS
6
PL
0.5
SIG
140
FHA
27
DC Max
-0.017
DC Min
-0.031
TCDCON
h6
ZEFF
2
