MP3MCD5/32
Skip to product information

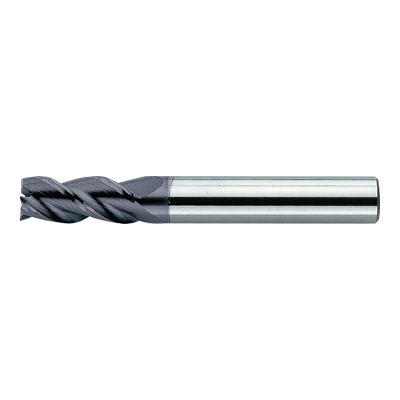

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10579497

ANSI

MP3MC/5/32

ISO

MP3MCD5/32

P (Steel) M (Stainless) S (Heat-Resistant) H (Hard material)

12

Regular price $57.75 USD
Regular price Sale price $57.75 USD
Sale

EDP

10579497

ANSI

MP3MC/5/32

ISO

MP3MCD5/32

P (Steel) M (Stainless) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions

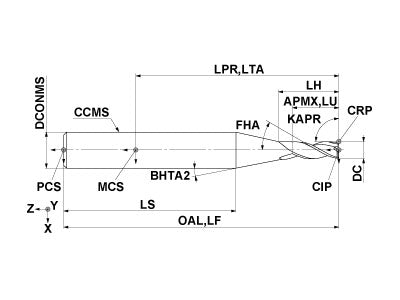

  • Drawings
  • Technical Information
MP3MCD5/32
Coolant
External
Hand
Right

Unit: mm

DC
3.969
APMX
9.92
LU
9.92
LH
11.12
OAL
50.8
DCONMS
6.35
BHTA2
15
FHA
30
ZEFP
3
ZEFF
3
MP3MCD5/32

Unit: mm

DC
3.969
APMX
9.92
LU
9.92
LH
11.12
OAL
50.8
DCONMS
6.35
BHTA2
15
FHA
30
ZEFP
3
ZEFF
3
