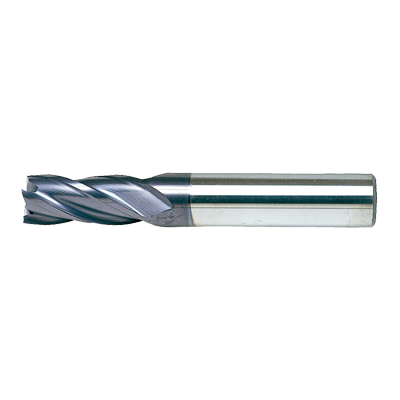

MP4MCD3/16
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10579695

ANSI

MP4MC/3/16

ISO

MP4MCD3/16

P (Steel) M (Stainless) S (Heat-Resistant) H (Hard material)

216

Regular price $61.44 USD
Regular price Sale price $61.44 USD
Sale

EDP

10579695

ANSI

MP4MC/3/16

ISO

MP4MCD3/16

P (Steel) M (Stainless) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions

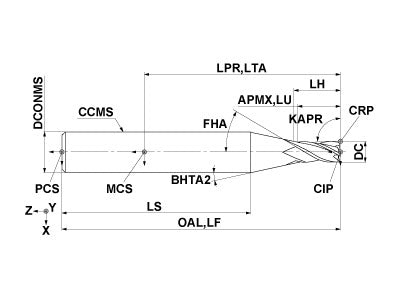

  • Drawings
  • Technical Information
MP4MCD3/16
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.469
LU
0.469
LH
0.516
OAL
2
DCONMS
0.25
BHTA2
15
FHA
30.0
ZEFP
4
ZEFF
4
MP4MCD3/16

Unit: inch

DC
0.1875
APMX
0.469
LU
0.469
LH
0.516
OAL
2
DCONMS
0.25
BHTA2
15
FHA
30.0
ZEFP
4
ZEFF
4
