APX3KUR202FA20S14A08
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10589946

ANSI

APX3KUR202FA20S14A08

ISO

APX3KUR202FA20S14A08

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling

Stock
11

Price
$1,081.65 USD
$1,081.65 USD
Sale

EDP

10589946

ANSI

APX3KUR202FA20S14A08

ISO

APX3KUR202FA20S14A08

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Vertical milling Application_Slot milling
View full details
  • Dimensions
  • Features

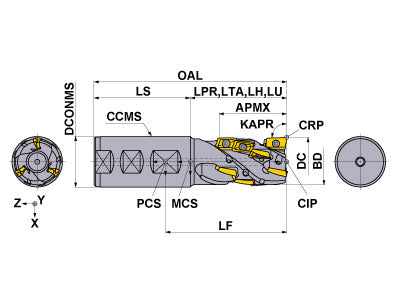

  • Drawings
  • Technical Information
APX3KUR202FA20S14A08
Coolant
Internal
Hand
Right

Unit: mm

DC
31.75
LF
90.487
APMX
37
LH
50.8
OAL
133.35
DCONMS
31.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
1.5
GAMF
-9
GAMP
10
WT
0.690
APX3KUR202FA20S14A08

Unit: mm

DC
31.75
LF
90.487
APMX
37
LH
50.8
OAL
133.35
DCONMS
31.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
1.5
GAMF
-9
GAMP
10
WT
0.690


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS25-1 291590 TPS25-1
inventory mark
$3.36
