VPX300UR2003SA20S
print open mailer

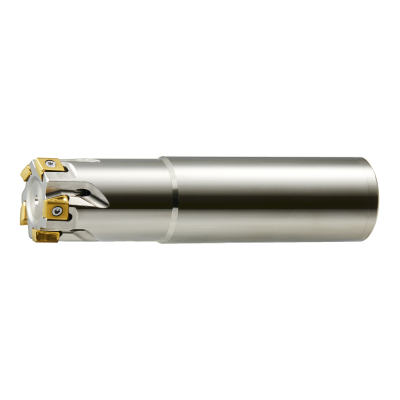

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10596814

ANSI

VPX300UR2003SA20S

ISO

VPX300UR2003SA20S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
18

Price
$539.76 USD
$539.76 USD
Sale

EDP

10596814

ANSI

VPX300UR2003SA20S

ISO

VPX300UR2003SA20S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

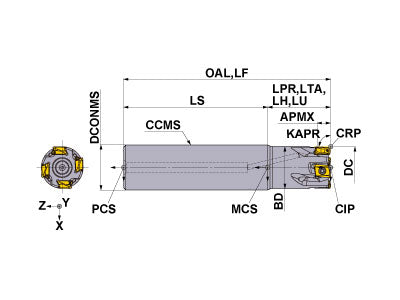

  • Drawings
  • Technical Information
VPX300UR2003SA20S
Coolant
Internal
Hand
Right

Unit: mm

DC
31.75
LF
130.175
APMX
11
LH
50.8
OAL
130.175
DCONMS
31.75
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
1.49
RPMX
20700
GAMF
-24.5
GAMP
-6
WT
1.500
VPX300UR2003SA20S

Unit: mm

DC
31.75
LF
130.175
APMX
11
LH
50.8
OAL
130.175
DCONMS
31.75
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
1.49
RPMX
20700
GAMF
-24.5
GAMP
-6
WT
1.500


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS40F1 10585887 TPS40F1
inventory mark
$7.27
MK1KS 291805 MK1KS
inventory mark
$4.79
TIP15W 410544 TIP15W
inventory mark
$25.07
