VPX300UR1602FA16S
Skip to product information

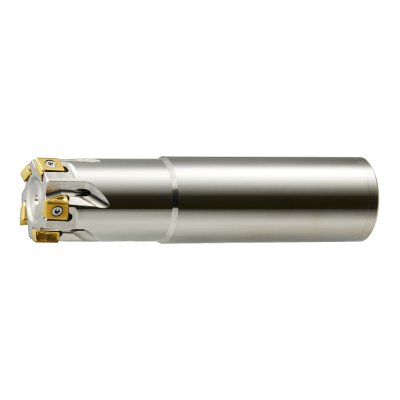

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10596845

ANSI

VPX300UR1602FA16S

ISO

VPX300UR1602FA16S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

54

Regular price $450.68 USD
Regular price Sale price $450.68 USD
Sale

EDP

10596845

ANSI

VPX300UR1602FA16S

ISO

VPX300UR1602FA16S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

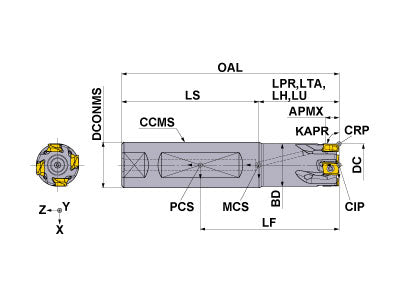

  • Drawings
  • Technical Information
VPX300UR1602FA16S
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
3.031
APMX
0.433
LH
1.75
OAL
4.75
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
2.07
RPMX
23900
GAMF
-29
GAMP
-8.5
WT
0.800
VPX300UR1602FA16S

Unit: inch

DC
1
LF
3.031
APMX
0.433
LH
1.75
OAL
4.75
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
2.07
RPMX
23900
GAMF
-29
GAMP
-8.5
WT
0.800

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS40F1 10585887 TPS40F1
inventory mark
$7.27
MK1KS 291805 MK1KS
inventory mark
$4.79
TIP15W 410544 TIP15W
inventory mark
$25.07
