- Dimensions
- Features

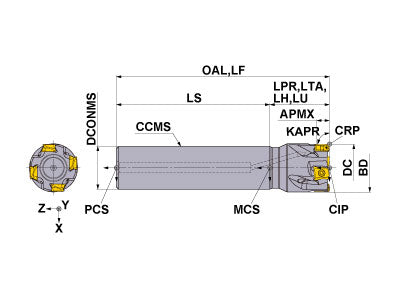

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: inch
DC
1.5
LF
9
APMX
0.433
LH
2
OAL
9
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
1.13
RPMX
18500
GAMF
-22.5
GAMP
-6
WT
3.000
