VPX300UR1602AM1235
print open mailer

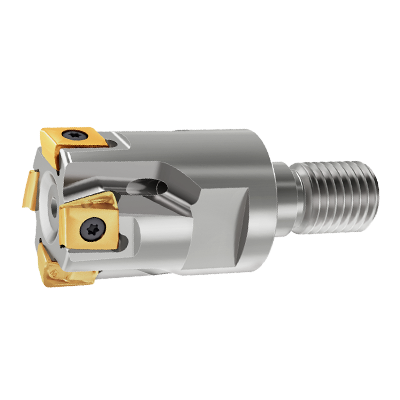

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10596968

ANSI

VPX300UR1602AM1235

ISO

VPX300UR1602AM1235

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
14

Price
$441.50 USD
$441.50 USD
Sale

EDP

10596968

ANSI

VPX300UR1602AM1235

ISO

VPX300UR1602AM1235

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

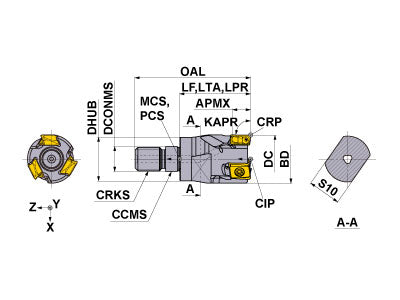

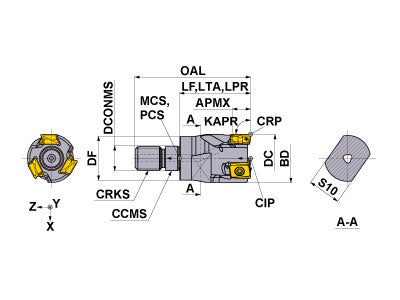

  • Drawings
  • Technical Information
VPX300UR1602AM1235
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
1.378
APMX
0.433
OAL
2.244
DCONMS
0.492
DCSFMS
0.925
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
2.07
GAMF
-29
GAMP
-8.5
WT
0.200
VPX300UR1602AM1235

Unit: inch

DC
1
LF
1.378
APMX
0.433
OAL
2.244
DCONMS
0.492
DCSFMS
0.925
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
2.07
GAMF
-29
GAMP
-8.5
WT
0.200


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS40F1 10585887 TPS40F1
inventory mark
$7.27
TIP15W 410544 TIP15W
inventory mark
$25.07
MK1KS 291805 MK1KS
inventory mark
$4.79
