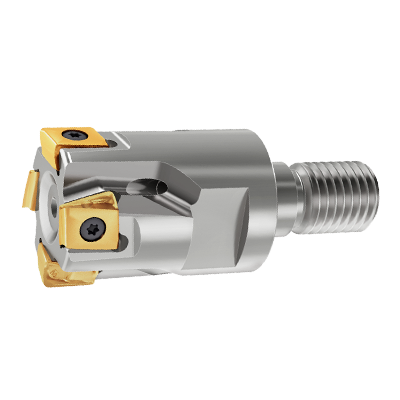

VPX300UR2404AM1640
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10597033

ANSI

VPX300UR2404AM1640

ISO

VPX300UR2404AM1640

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Out of stock

Price
$693.17 USD
$693.17 USD
Sale

EDP

10597033

ANSI

VPX300UR2404AM1640

ISO

VPX300UR2404AM1640

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

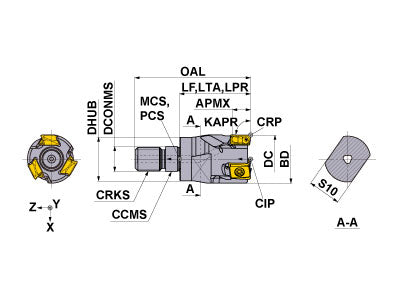

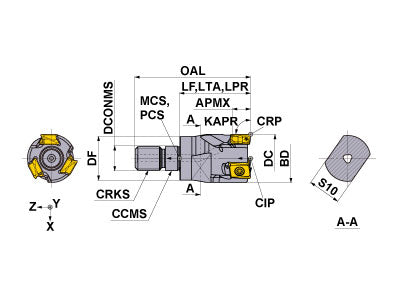

  • Drawings
  • Technical Information
VPX300UR2404AM1640
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
1.575
APMX
0.433
OAL
2.48
DCONMS
0.669
DCSFMS
1.122
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
1.13
GAMF
-22.5
GAMP
-6
WT
0.500
VPX300UR2404AM1640

Unit: inch

DC
1.5
LF
1.575
APMX
0.433
OAL
2.48
DCONMS
0.669
DCSFMS
1.122
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
1.13
GAMF
-22.5
GAMP
-6
WT
0.500


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.79
TIP15W 410544 TIP15W
inventory mark
$25.07
TPS40F1 10585887 TPS40F1
inventory mark
$7.27
