VPX200UR1.2505SA
print open mailer

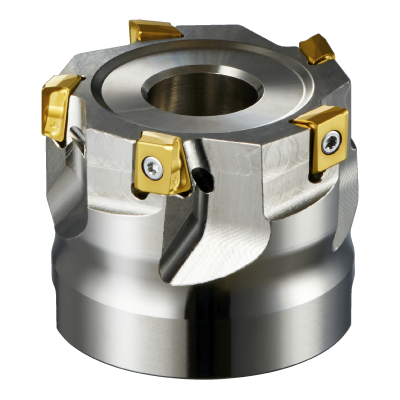

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10597132

ANSI

VPX200UR1.2505SA

ISO

VPX200UR1.2505SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
32

Price
$626.23 USD
$626.23 USD
Sale

EDP

10597132

ANSI

VPX200UR1.2505SA

ISO

VPX200UR1.2505SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

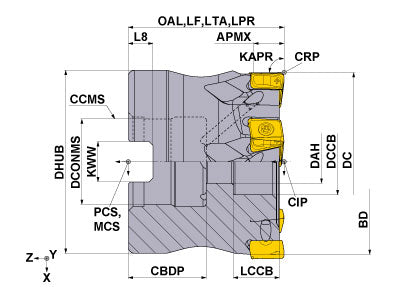

  • Drawings
  • Technical Information
VPX200UR1.2505SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
LF
1.375
APMX
0.315
OAL
1.375
DCONMS
0.5
DCSFMS
1.125
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
0.72
RPMX
25200
GAMF
-25
GAMP
-6
WT
0.120
VPX200UR1.2505SA

Unit: inch

DC
1.25
LF
1.375
APMX
0.315
OAL
1.375
DCONMS
0.5
DCSFMS
1.125
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
0.72
RPMX
25200
GAMF
-25
GAMP
-6
WT
0.120


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.79
HSCU25011H 846891 HSCU25011H
inventory mark
$20.72
TIP07F 291573 TIP07F
inventory mark
$6.28
TPS27F2 10583807 TPS27F2
inventory mark
$5.81
