VPX200UR2.0005AA
print open mailer

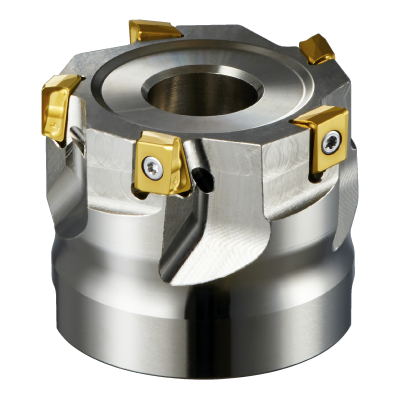

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10597187

ANSI

VPX200UR2.0005AA

ISO

VPX200UR2.0005AA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
33

Price
$635.40 USD
$635.40 USD
Sale

EDP

10597187

ANSI

VPX200UR2.0005AA

ISO

VPX200UR2.0005AA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

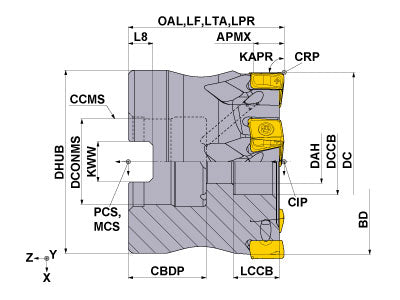

  • Drawings
  • Technical Information
VPX200UR2.0005AA
Coolant
Internal
Hand
Right

Unit: mm

DC
50.8
LF
44.45
APMX
8
OAL
44.45
DCONMS
19.05
DCSFMS
44.45
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
0.41
RPMX
19000
GAMF
-25
GAMP
-6
WT
0.410
VPX200UR2.0005AA

Unit: mm

DC
50.8
LF
44.45
APMX
8
OAL
44.45
DCONMS
19.05
DCSFMS
44.45
NOF
5
ZEFF
5
ZEFP
5
KAPR
90
RMPX
0.41
RPMX
19000
GAMF
-25
GAMP
-6
WT
0.410


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS27F2 10583807 TPS27F2
inventory mark
$5.81
MK1KS 291805 MK1KS
inventory mark
$4.79
HSCU37513H 242835 HSCU37513H
inventory mark
$21.20
TIP07F 291573 TIP07F
inventory mark
$7.61
