VPX200UR1202SA12S
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10597255

ANSI

VPX200UR1202SA12S

ISO

VPX200UR1202SA12S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
1

Price
$400.90 USD
$400.90 USD
Sale

EDP

10597255

ANSI

VPX200UR1202SA12S

ISO

VPX200UR1202SA12S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

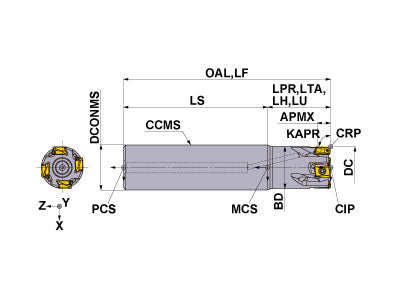

  • Drawings
  • Technical Information
VPX200UR1202SA12S
Coolant
Internal
Hand
Right

Unit: mm

DC
19.05
LF
111.125
APMX
8
LH
38.1
OAL
111.125
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
1.43
RPMX
34200
GAMF
-28
GAMP
-7
WT
0.500
VPX200UR1202SA12S

Unit: mm

DC
19.05
LF
111.125
APMX
8
LH
38.1
OAL
111.125
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
1.43
RPMX
34200
GAMF
-28
GAMP
-7
WT
0.500


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS27F1 10583791 TPS27F1
inventory mark
$5.81
