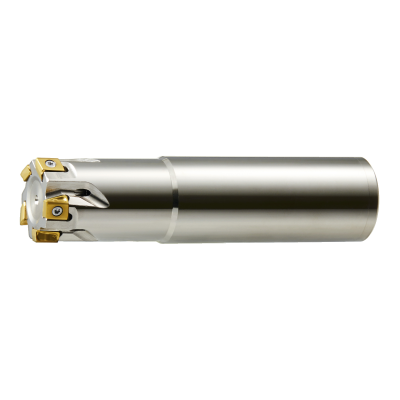

VPX200UR1603SA12S
The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
Stock
13
Price
Regular price
$469.00 USD
Regular price
Sale price
$469.00 USD
Unit price
per
- Dimensions
- Features

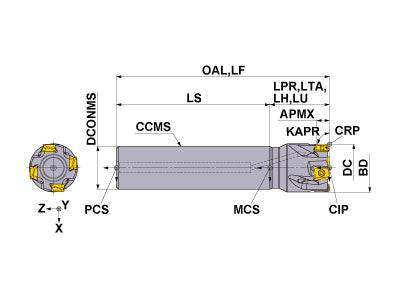

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: mm
DC
25.4
LF
120.65
APMX
8
LH
38.1
OAL
120.65
DCONMS
19.05
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
0.95
RPMX
28800
GAMF
-25
GAMP
-6
WT
0.600
Unit: mm
DC
25.4
LF
120.65
APMX
8
LH
38.1
OAL
120.65
DCONMS
19.05
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
0.95
RPMX
28800
GAMF
-25
GAMP
-6
WT
0.600
