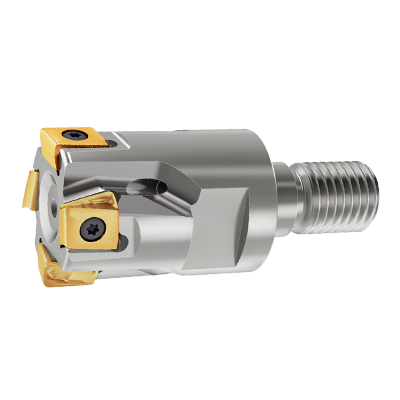

VPX200UR1402AM1030
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

10597668

ANSI

VPX200UR1402AM1030

ISO

VPX200UR1402AM1030

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
11

Price
$400.90 USD
$400.90 USD
Sale

EDP

10597668

ANSI

VPX200UR1402AM1030

ISO

VPX200UR1402AM1030

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

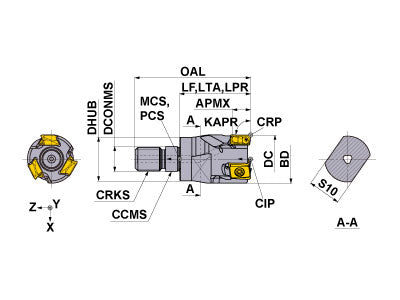

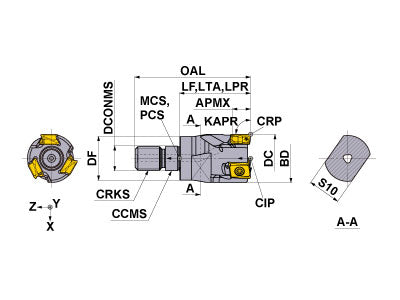

  • Drawings
  • Technical Information
VPX200UR1402AM1030
Coolant
Internal
Hand
Right

Unit: mm

DC
22.225
LF
30
APMX
8
OAL
49
DCONMS
10.5
DCSFMS
18.5
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
1.14
GAMF
-25
GAMP
-6
WT
0.200
VPX200UR1402AM1030

Unit: mm

DC
22.225
LF
30
APMX
8
OAL
49
DCONMS
10.5
DCSFMS
18.5
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
1.14
GAMF
-25
GAMP
-6
WT
0.200


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS27F2 10583807 TPS27F2
inventory mark
$5.81
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
