GY2G0300F005N-GL RT9010
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10603574

ANSI

GY2G0300F005N-GL RT9010

ISO

GY2G0300F005N-GL RT9010

N (Non-Ferrous)

160

Regular price $30.79 USD
Regular price Sale price $30.79 USD
Sale

EDP

10603574

ANSI

GY2G0300F005N-GL RT9010

ISO

GY2G0300F005N-GL RT9010

N (Non-Ferrous)
View full details
  • Dimensions

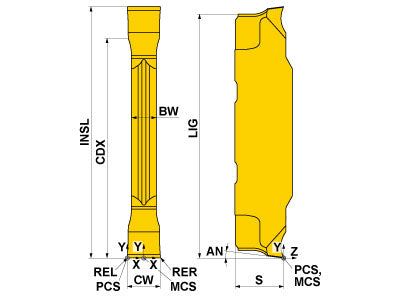

  • Drawings
  • Technical Information
GY2G0300F005N-GL RT9010
Hand
Neutral

Unit: mm

CW
3
REL
0.05
RER
0.05
CDX
18.9
CWTOLL
-0.02
CWTOLU
0.02
S
4.35
GY2G0300F005N-GL RT9010

Unit: mm

CW
3
REL
0.05
RER
0.05
CDX
18.9
CWTOLL
-0.02
CWTOLU
0.02
S
4.35
