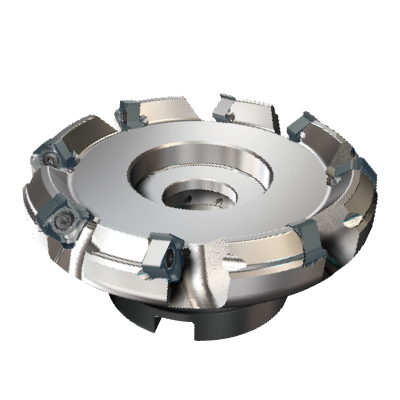

WSX445UR1010MN
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10614266

ANSI

WSX445UR1010MN

ISO

WSX445UR1010MN

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

11

Regular price $2,967.78 USD
Regular price Sale price $2,967.78 USD
Sale

EDP

10614266

ANSI

WSX445UR1010MN

ISO

WSX445UR1010MN

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

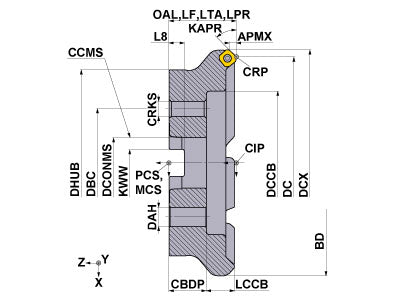

  • Drawings
  • Technical Information
WSX445UR1010MN
Coolant
External
Hand
Right

Unit: inch

DC
10
DCX
10.506
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
2.5
DCSFMS
8.661
NOF
10
ZEFF
10
ZEFP
10
KAPR
45
RPMX
7500
GAMF
-10
GAMP
-6
WT
28.500
WSX445UR1010MN

Unit: inch

DC
10
DCX
10.506
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
2.5
DCSFMS
8.661
NOF
10
ZEFF
10
ZEFP
10
KAPR
45
RPMX
7500
GAMF
-10
GAMP
-6
WT
28.500

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS4R 846049 TPS4R
inventory mark
$5.79
TIP15W 410544 TIP15W
inventory mark
$25.07
