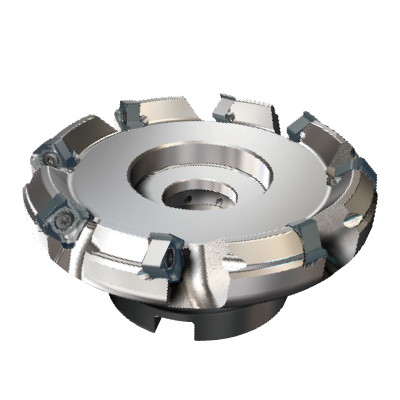

WSX445UR1214MN
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10614280

ANSI

WSX445UR1214MN

ISO

WSX445UR1214MN

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

6

Regular price $5,211.95 USD
Regular price Sale price $5,211.95 USD
Sale

EDP

10614280

ANSI

WSX445UR1214MN

ISO

WSX445UR1214MN

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

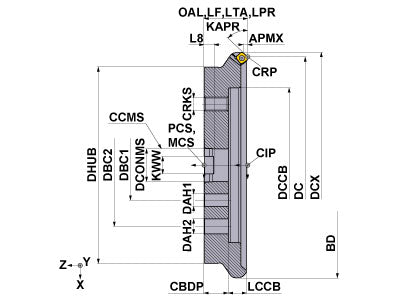

  • Drawings
  • Technical Information
WSX445UR1214MN
Coolant
External
Hand
Right

Unit: inch

DC
12
DCX
12.506
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
2.5
DCSFMS
11.22
NOF
14
ZEFF
14
ZEFP
14
KAPR
45
RPMX
6500
GAMF
-10
GAMP
-6
WT
48.100
WSX445UR1214MN

Unit: inch

DC
12
DCX
12.506
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
2.5
DCSFMS
11.22
NOF
14
ZEFF
14
ZEFP
14
KAPR
45
RPMX
6500
GAMF
-10
GAMP
-6
WT
48.100

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS4R 846049 TPS4R
inventory mark
$5.79
TIP15W 410544 TIP15W
inventory mark
$25.07
