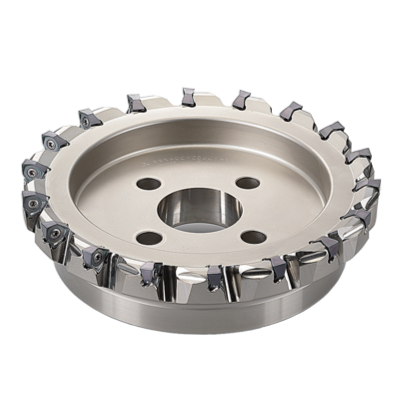

WWX400UR8.0010MN
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

10614853

ANSI

WWX400UR8.0010MN

ISO

WWX400UR8.0010MN

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

13

Regular price $2,557.95 USD
Regular price Sale price $2,557.95 USD
Sale

EDP

10614853

ANSI

WWX400UR8.0010MN

ISO

WWX400UR8.0010MN

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions
  • Features

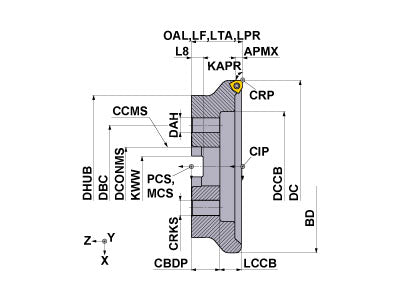

  • Drawings
  • Technical Information
WWX400UR8.0010MN
Coolant
External
Hand
Right

Unit: inch

DC
8
LF
2.5
APMX
0.323
OAL
2.5
DCONMS
2.5
DCSFMS
6.89
NOF
10
ZEFF
10
ZEFP
10
KAPR
90
RPMX
7200
GAMF
-7.2
GAMP
-6
WT
17.300
WWX400UR8.0010MN

Unit: inch

DC
8
LF
2.5
APMX
0.323
OAL
2.5
DCONMS
2.5
DCSFMS
6.89
NOF
10
ZEFF
10
ZEFP
10
KAPR
90
RPMX
7200
GAMF
-7.2
GAMP
-6
WT
17.300

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY20T 213663 TKY20T
inventory mark
$5.47
MK1KS 291805 MK1KS
inventory mark
$4.79
TS5R 10596043 TS5R
inventory mark
$6.33
