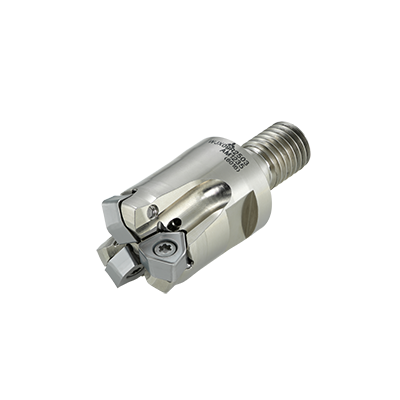

WJX09UR1603AM1235
The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
Stock
12
Price
Regular price
$514.13 USD
Regular price
Sale price
$514.13 USD
Unit price
per
- Dimensions
- Features

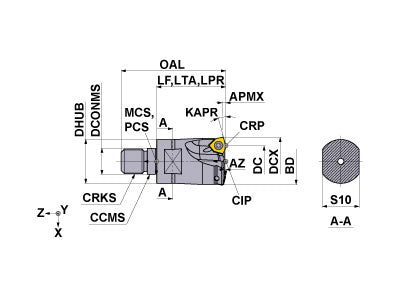

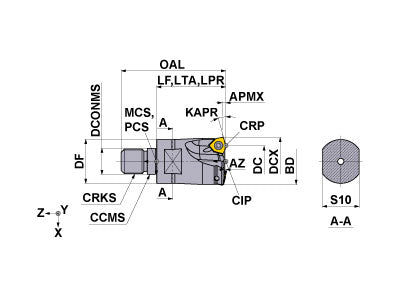

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: mm
DC
14.35
DCX
25.4
LF
35
APMX
1.2
OAL
57
DCONMS
12.5
DCSFMS
23.5
NOF
3
ZEFF
3
ZEFP
3
KAPR
15
RMPX
4.5
RPMX
33000
GAMF
-12
GAMP
-8.5
WT
0.200
