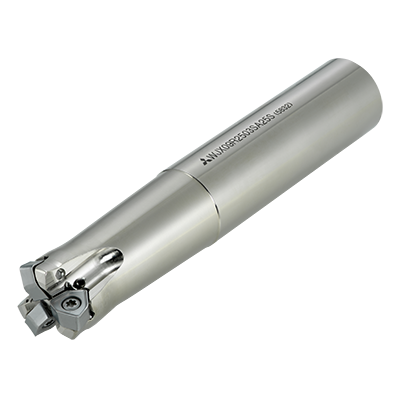

WJX09UR1803FA16S
The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
Stock
12
Price
Regular price
$576.47 USD
Regular price
Sale price
$576.47 USD
Unit price
per
- Dimensions
- Features

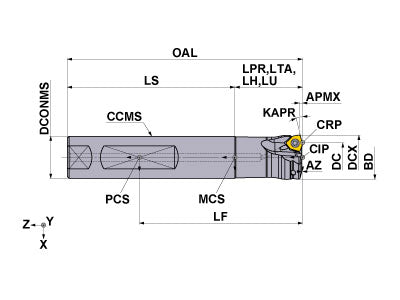

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: mm
DC
17.44
DCX
28.575
LF
99.219
APMX
1.2
LH
41.275
OAL
142.875
DCONMS
25.4
NOF
3
ZEFF
3
ZEFP
3
KAPR
15
RMPX
5.3
RPMX
29800
GAMF
-11
GAMP
-7
WT
1.100
Unit: mm
DC
17.44
DCX
28.575
LF
99.219
APMX
1.2
LH
41.275
OAL
142.875
DCONMS
25.4
NOF
3
ZEFF
3
ZEFP
3
KAPR
15
RMPX
5.3
RPMX
29800
GAMF
-11
GAMP
-7
WT
1.100
