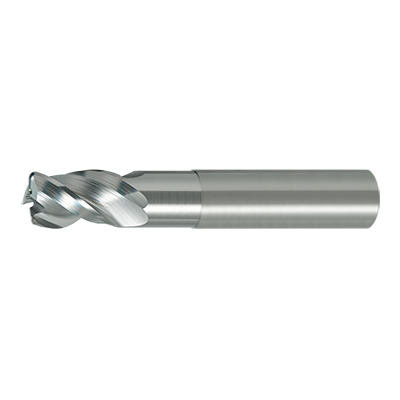

The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
1
/
of
2
EDP
10633038
ANSI
A3SARB/2RX12X36
ISO
A3SARB120R200N36C
Stock
5
Price
Regular price
$346.60 USD
Regular price
Sale price
$346.60 USD
Unit price
/
per
EDP
10633038
ANSI
A3SARB/2RX12X36
ISO
A3SARB120R200N36C
Change the number in sums of 1s.
Couldn't load pickup availability

- Dimensions
- Features
- Drawings
- Technical Information
Coolant
Internal
Hand
Right

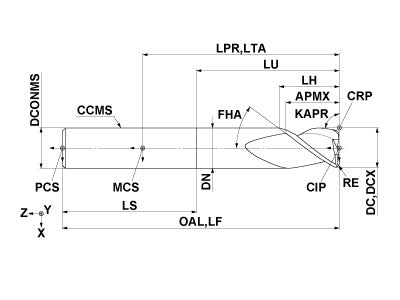

Unit: mm
DC
12
APMX
18
LU
36
LH
18.3
OAL
80
DN
11.4
DCONMS
12
RE
2
FHA
37.5
ZEFP
3
ZEFF
3
Unit: mm
DC
12
APMX
18
LU
36
LH
18.3
OAL
80
DN
11.4
DCONMS
12
RE
2
FHA
37.5
ZEFP
3
ZEFF
3
Stability and reliability even when slotting, ramping and plunging.
The cross sectional geometry of the flutes is perfect for efficient chip discharge.
2D Model (DXF)
3D Model (STP)
