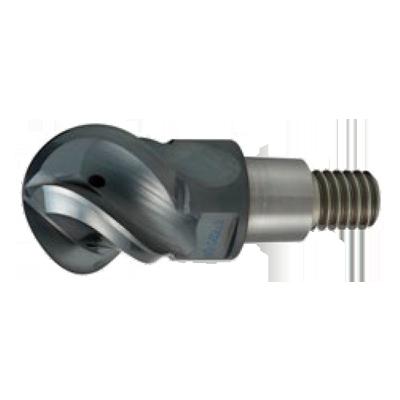

The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
1
/
of
2
EDP
10633441
ANSI
IMX12B4WH0625MS EP7020
ISO
IMX12B4WH0625MS EP7020
Stock
83
Price
Regular price
$395.13 USD
Regular price
Sale price
$395.13 USD
Unit price
/
per
EDP
10633441
ANSI
IMX12B4WH0625MS EP7020
ISO
IMX12B4WH0625MS EP7020
Change the number in sums of 1s.
Couldn't load pickup availability

- Dimensions
- Features

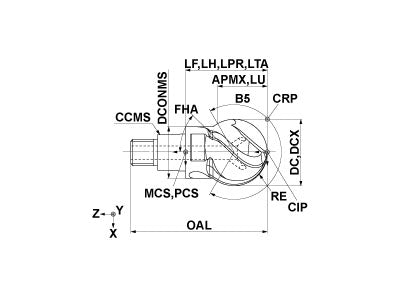

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: inch
DC
0.625
APMX
0.469
LU
0.469
LH
0.799
OAL
1.378
DCONMS
0.4882
RE
0.3125
FHA
45.0
ZEFP
4
ZEFF
2
Unit: inch
DC
0.625
APMX
0.469
LU
0.469
LH
0.799
OAL
1.378
DCONMS
0.4882
RE
0.3125
FHA
45.0
ZEFP
4
ZEFF
2
Optimal choice for machining undercut and complex shapes when using a 5-axis machine.
Coolant thru design allows for effective chip evacuation.
2D Model (DXF)
3D Model (STP)
