diaedge

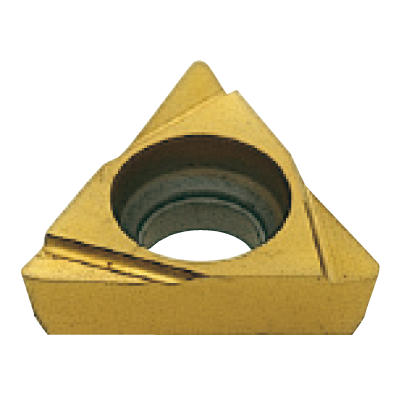

TPGX090204L HTI10
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

108314

ANSI

TPGX1.81.51L HTI10

ISO

TPGX090204L HTI10

K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

20

Regular price $18.96 USD
Regular price Sale price $18.96 USD
Sale

EDP

108314

ANSI

TPGX1.81.51L HTI10

ISO

TPGX090204L HTI10

K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions

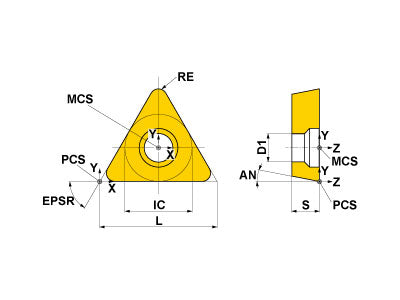

  • Drawings
  • Technical Information
TPGX090204L HTI10
Hand
Left

Unit: mm

TC
G
CNC
3
EPSR
60
IC
5.56
S
2.38
AN
11
RE
0.4
LE
5
L
9.64
TPGX090204L HTI10

Unit: mm

TC
G
CNC
3
EPSR
60
IC
5.56
S
2.38
AN
11
RE
0.4
LE
5
L
9.64
