VDGX160304R HTI10
Skip to product information

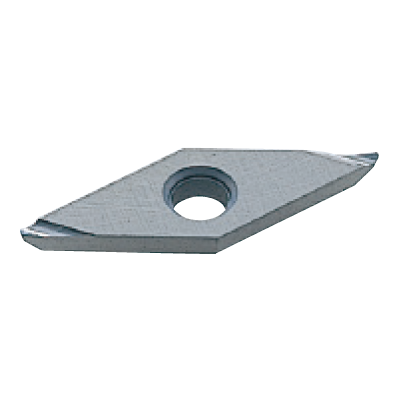

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

108935

ANSI

VDGX321R HTI10

ISO

VDGX160304R HTI10

N (Non-Ferrous)

70

Regular price $22.63 USD
Regular price Sale price $22.63 USD
Sale

EDP

108935

ANSI

VDGX321R HTI10

ISO

VDGX160304R HTI10

N (Non-Ferrous)
View full details
  • Dimensions

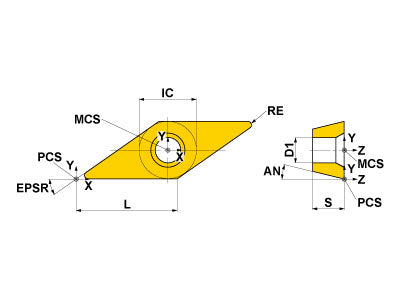

  • Drawings
  • Technical Information
VDGX160304R HTI10
Hand
Right

Unit: mm

TC
G
CNC
2
EPSR
35
IC
9.525
S
3.18
AN
15
RE
0.4
LE
6.1
L
16.61
VDGX160304R HTI10

Unit: mm

TC
G
CNC
2
EPSR
35
IC
9.525
S
3.18
AN
15
RE
0.4
LE
6.1
L
16.61
