diaedge

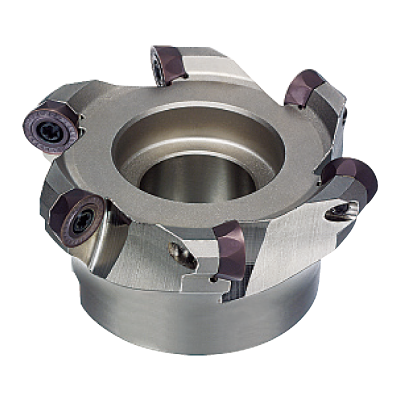

BRP6UPR0306C
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

126720

ANSI

BRP6UPR0306C

ISO

BRP6UPR0306C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

44

Regular price $846.82 USD
Regular price Sale price $846.82 USD
Sale

EDP

126720

ANSI

BRP6UPR0306C

ISO

BRP6UPR0306C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

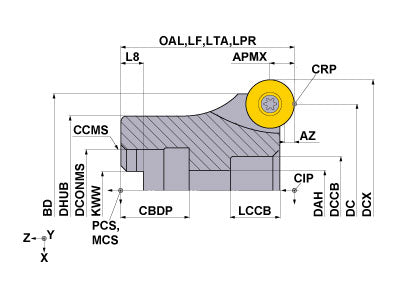

  • Drawings
  • Technical Information
BRP6UPR0306C
Coolant
External
Hand
Right

Unit: inch

DC
2.492
DCX
3
LF
2
APMX
0.24
OAL
2
DCONMS
1
DCSFMS
2.362
NOF
6
ZEFF
6
ZEFP
6
RMPX
3.99
GAMF
0
GAMP
5
BRP6UPR0306C

Unit: inch

DC
2.492
DCX
3
LF
2
APMX
0.24
OAL
2
DCONMS
1
DCSFMS
2.362
NOF
6
ZEFF
6
ZEFP
6
RMPX
3.99
GAMF
0
GAMP
5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS43 108744 TS43
inventory mark
$2.96
TKY15D 106900 TKY15D
inventory mark
$9.97
